This diagram illustrates the five different layout options of apartment units in the building, and the placement of each unit type within the building.

East Elevation
East Elevation
DIVA Solar Analysis
DIVA Solar Analysis

This visualization shows the comparative solar radiation levels across the face of the building before the addition of the glass facade.

Facade Panel Generation
Facade Panel Generation

Diagram of the process executed by custom solar radiation script I designed for this project. The exterior face of each modular unit is divided into a grid of static and dynamic nodes. An evolutionary algorithm optimizes the total radiation on each panel of the unit.

Smartphone App Mockup
Smartphone App Mockup

Concept for a phone app that controls the transparency of the glass panels out side of each unit

Modular Units
Modular Units

Prefabricated unit types that make up each apartment unit

Wide Render Retouch.jpg
Interior Render
Interior Render

Ground floor gallery space showing the overlook points from the courtyard

South Facade Render
South Facade Render
Corner Perspective
Corner Perspective
Grasshopper / DIVA Script
Grasshopper / DIVA Script
NYC Facades Small.jpg
Plans and Diagrams
East Elevation
DIVA Solar Analysis
Facade Panel Generation
Smartphone App Mockup
Modular Units
Wide Render Retouch.jpg
Interior Render
South Facade Render
Corner Perspective
Grasshopper / DIVA Script
NYC Facades Small.jpg
Plans and Diagrams

This diagram illustrates the five different layout options of apartment units in the building, and the placement of each unit type within the building.

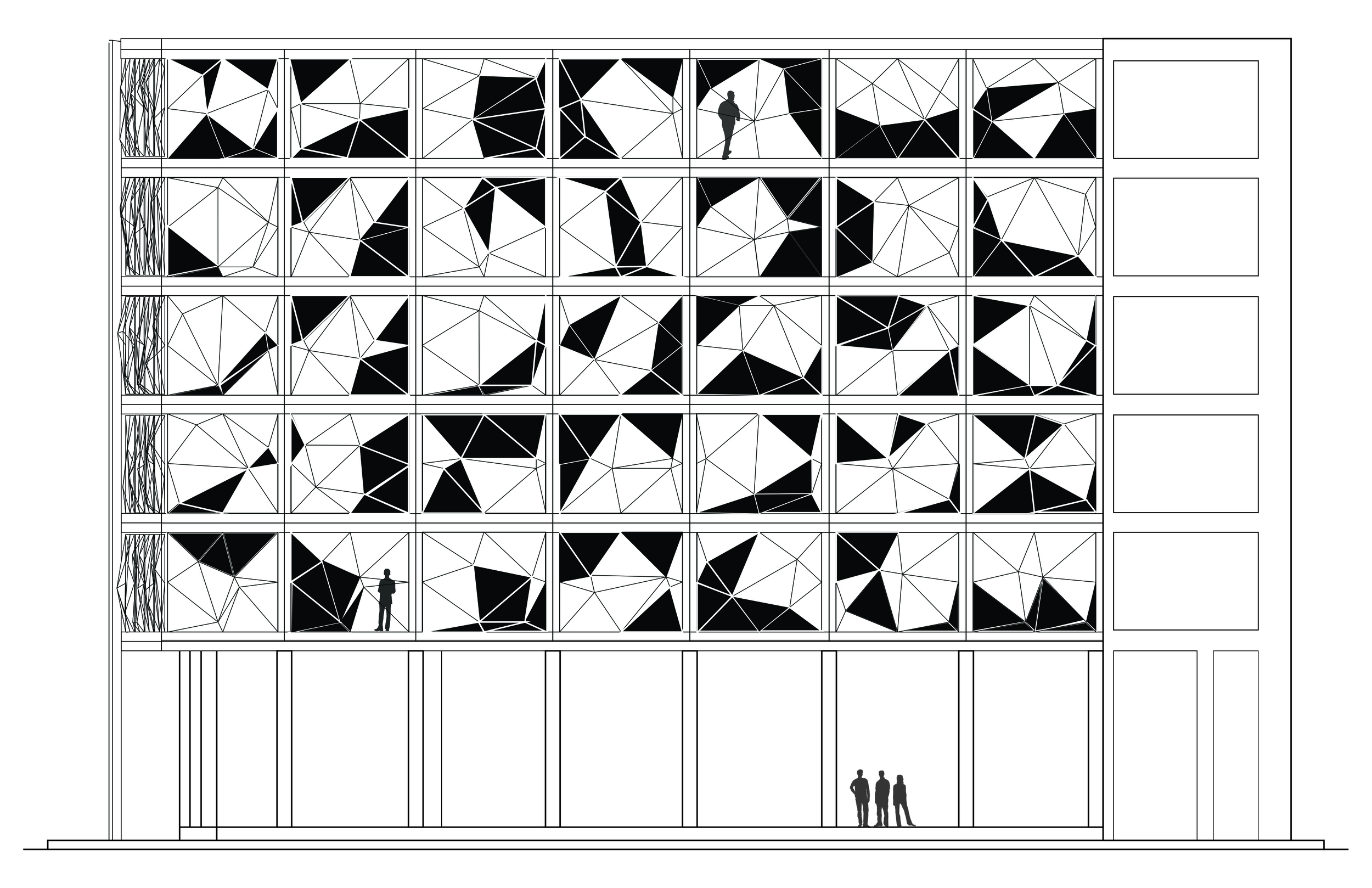

East Elevation
DIVA Solar Analysis

This visualization shows the comparative solar radiation levels across the face of the building before the addition of the glass facade.

Facade Panel Generation

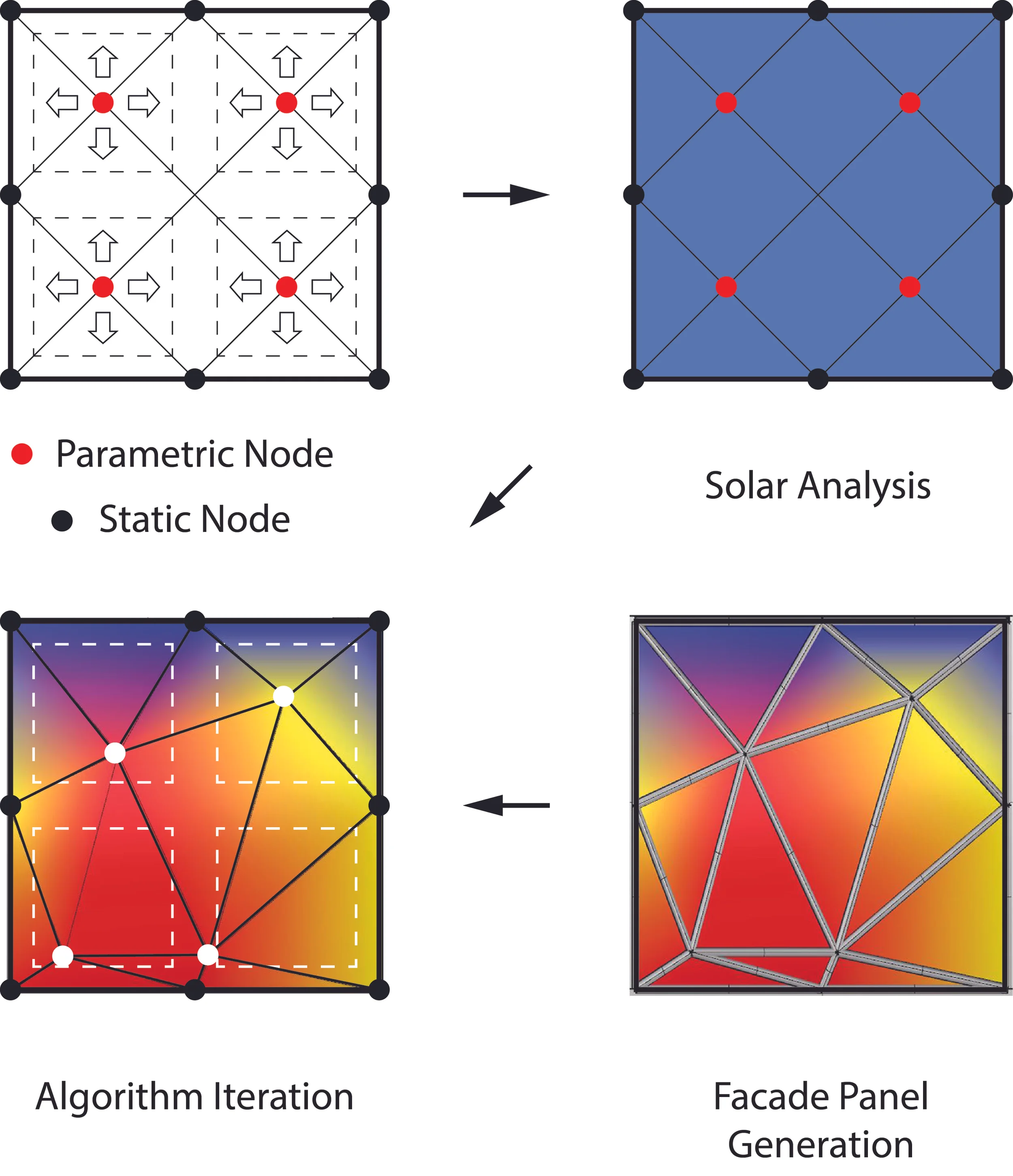

Diagram of the process executed by custom solar radiation script I designed for this project. The exterior face of each modular unit is divided into a grid of static and dynamic nodes. An evolutionary algorithm optimizes the total radiation on each panel of the unit.

Smartphone App Mockup

Concept for a phone app that controls the transparency of the glass panels out side of each unit

Modular Units

Prefabricated unit types that make up each apartment unit

Interior Render

Ground floor gallery space showing the overlook points from the courtyard

South Facade Render
Corner Perspective
Grasshopper / DIVA Script
